[Nishikawa Kazuhisa's irregular column] SNAPDRAGON 632 6.24 -inch smartphone "Moto G7" - PC Watch

Written By notebooktabletphone

 Trial article for Moto G7 Plus the other day (6 with Snapdragon 636).The 24 -inch smartphone, Motorola Moto G7 Plus), but the "Moto G7" introduced this time is equivalent to that brother, and the size/weight containing the panel is exactly the same, and it is a model with different SOCs and cameras.。The direct sales price excluding tax is 30,800 yen and the price difference is 8,000 yen.I'm interested in how different the content is due to a difference of less than 10,000 yen.

 The main specifications are as follows.

【表】モトローラ「moto g7」の仕様
SoCSnapdragon 632(8コア/1.8GHz、Adreno506 GPU内蔵)
メモリ4GB/LPDDR4
ストレージ64GB
OSAndroid 9 Pie
ディスプレイ6.24型LTPSフルHD+(2,270×1,080ドット/19:9/403ppi)
ネットワークIEEE 802.11n compatible, Bluetooth 4.2、LTE
対応バンドLTE : B1/2/3/4/5/7/8/18/19/20/26/28/38/40/413G : B1/2/5/8/19(B6含む)2G : 850/900/1,800/1,900MHz
インターフェイスUSB 2.0(Type-C)、microSDカードスロット(最大512GB)、NFC、Nano SIMカードスロット×2(DSDS対応)、3.5mmイヤフォンジャック、モノラルスピーカー
センサー指紋認証、加速度、ジャイロ、コンパス、近接、環境照度
カメラ前面800万画素(f/2.2), the back of 12 million pixels (f/1).8)+500万画素、PDAF(位相差オートフォーカス)
サイズ/重量約75.3 × 157 × 8.27mm(幅×奥行き×高さ)/約174g
バッテリ3,000mAh
カラーバリエーションセラミックブラック、クリアホワイト
税別直販価格30,800円

 SOC is Snapdragon 632. Maximum 1 in 8 cores.8GHz.It has a built -in adreno506 as a GPU.The Moto G7 Plus was Snapdragon 636, but the built -in GPU is ADRENO506 or Adreno509.It seems that 50%processing capacity has been improved compared to the "Moto G6 (Snapdragon 450)" equivalent to the previous model.Memory is LPDDR4 4GB and storage is 64GB.The OS is equipped with Android 9 Pie.

 The display is 6.24 type LTPS Full HD+(2,270 x 1,080 dots/19: 9/403PPI).Compared to Moto G7 Plus, the size/resolution is the same, but there is a difference between IPS type or LTPS liquid crystal.

 The network function is IEEE 802.11n compatible, Bluetooth 4.2, NFC and Moto G7 Plus IEEE 802.11ac compatible, Bluetooth 5.A little down from 0.However, the SIM is Nano SIM x 2 for DSDS.The corresponding band is the same as the Moto G7 Plus as shown in the table.

 The interface is USB 2.0 Type-C, microSD card slot (up to 512GB), 3.5mm earphone jack, monaural speaker.The speakers have been changed from Moto G7 Plus stereo to monaural.The sensor has a built -in fingerprint authentication, acceleration, gyro, compass, proximity, and environmental illuminance.The AC adapter comes with a 15W turbo power charger (27W for Moto G7 Plus).

 The camera is 8 million pixels (F/2).2), the back of 12 million pixels (f/1).8) +5 million pixels, PDAF (phase difference autofocus).Mainly the number of pixels, the presence or absence of TOF camera/optical transignation correction is different.

【西川和久の不定期コラム】Snapdragon 632搭載で3万円の6.24型スマホ「moto g7」 - PC Watch

 Built -in 3,000mAh battery and size about 75.3 × 157 × 8.27mm (width x depth x height), weight about 174g.Almost the same for those with a slightly different weight.The color variations are ceramic black and clear white.The direct sales price excluding tax is 30,800 yen.

 As mentioned above, compared to the Moto G7 Plus, the size/weight is almost the same, so SOC, camera, panel type, Wi-Fi, Bluetooth, speakers, and AC adapters cost down 8,000 yen.Personally, if you don't have this much, I think it's better to use PLUS only and lower the price of PLUS for support costs for one model.

 The Moto G7 series "Moto G7 Power" is a model that has the same main part of the Moto G7 and increased the 3,000mAh battery to 5,000mAh.The size is different from the size due to the increase in the battery capacity, about 75.3x159.4x9.The depth and height are increased with 3mm (width x depth x height), and the weight is about 193g and 19g heavy.

パネル中央上に前面カメラ。ノッチはかなりせまい。ナビゲーションボタンはソフトウェア式中央上に背面カメラ、その下「M」の部分が指紋センサー下側面にスピーカー、Type-C、3.5mmイヤフォンジャック。左側面にはなにもない上側面にmicroSDカード/Nano SIMカードスロット。右側面に音量±ボタンと電源ボタンNano SIMスロット付近。手前から順にmicroSDカード、SIM1、SIM2。排他ではなくすべて同時に使用できる付属品はソフトケース、USBケーブル、イヤフォン/イヤパッド、イジェクトピン、USB式ACアダプタはサイズ約4.5×4×2.2cm、重量48g、出力5V3A/9V2A/12V1.5A重量は実測で173gmoto g7 plus(奥)とのツーショット。パネルやサイズが同じなので並ぶとまったく判別が付かない。唯一カラーバリエーションの2色が異なる。IPS式かLTPS液晶かの差もほとんどない

 Moto G7 has two color variations "Ceramic Black" and "Clear White", both are beautiful, but the personal preference is clear white.As you can see from the two -shot photos with Moto G7 Plus, the appearance and size are exactly the same.Unless it is determined by the color of the color variation on the back, it cannot be distinguished which one is.

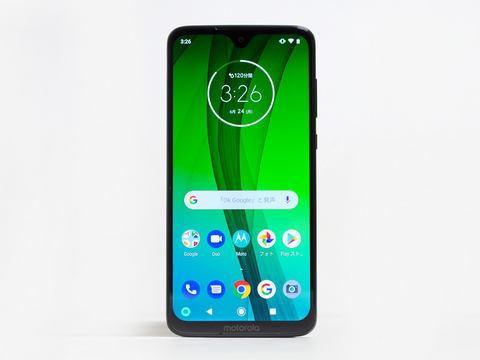

 The front is the front camera on the center of the panel.The notch is quite small.The navigation button is software type.The back is the back camera on the center, and the "M" part is a fingerprint sensor.Speakers on the lower side, Type-C, 3.5mm earphone jack.MicroSD card/nano SIM card slot on the upper side.Place the volume ± button and power button on the right side.MicroSD cards can be used simultaneously instead of SIM1/2.

 Accessories include soft cases, USB cables, earphones/earpads, e -genuine, and USB AC adapters for size 45 x 40 x 22mm, weight 48g, output 5V3A/9v2a/12V1.5A (15W turbo power charger).The AC adapter is slightly smaller because the output is low.

 The display is 6.24 type LTPS Full HD+(2,270 x 1,080 dots/19: 9/403PPI).Although it is not an IPS type but an LTPS, there is no difference in brightness, color development, contrast, viewing angle, etc.However, the maximum brightness is about half of the iPhone X.Color: Natural/Boost/Vivid and night displays.

 The fever was a little warm, even if the load was applied, such as benchmark testing and continuous shooting of the camera.

 The sound is compatible with Dolby audio, but the speakers are monaural.Compared to the stereo speaker Moto G7 Plus, the power and the spread of sound are overwhelmingly inferior.The sound quality tends to be the same for both speakers and earphones.It is the same as Moto G7 Plus, and it is a sharp sound centered on the middle range.On the other hand, classical systems are probably not good because they are poor in transparency and quietness.

 Bluetooth audio codic is compatible with SBC/AAC/APTX (HD)/LDAC (from setting/developer options).
